pi!MON101 · Monitor with Raspberry Pi
Your application, our monitor
The pi!MON101 combines the elegant housing of the web!SIGN101 with an integrated Raspberry Pi and a pre-installed Linux operating system – as an open platform for your own application. Key operating parameters such as network settings can be conveniently configured via the browser. The read-only filesystem protects the SD card during operation from unwanted write accesses. For interactive applications, the pi!MON101 is also available with capacitive touch.
10.1"Diagonal
LinuxOperating System
IP65Front Protection
PoEPower Supply
Technical Data
Full Specification
| Parameter | Unit | Value |
|---|---|---|
| Display | ||
| Diagonal | inch / cm | 10.1" (26 cm) |
| Technology | – | MVA TFT |
| Resolution | px | 1280 × 800 |
| Touch (option) | – | Capacitive (PCAP) |
| Computing Unit | ||
| Controller | – | Raspberry Pi® (ARM-based) |
| Operating System | – | Linux Raspberry OS (read-only filesystem) |
| Web Server | – | Apache with PHP |
| Filesystem | – | Switchable read-only / read-write |
| Housing & Protection | ||
| Bezel Frame | – | Solid aluminium |
| Protective Glass | – | ESG with black-printed frame (colour changeable) |
| Protection Class (front) | – | IP 65 |

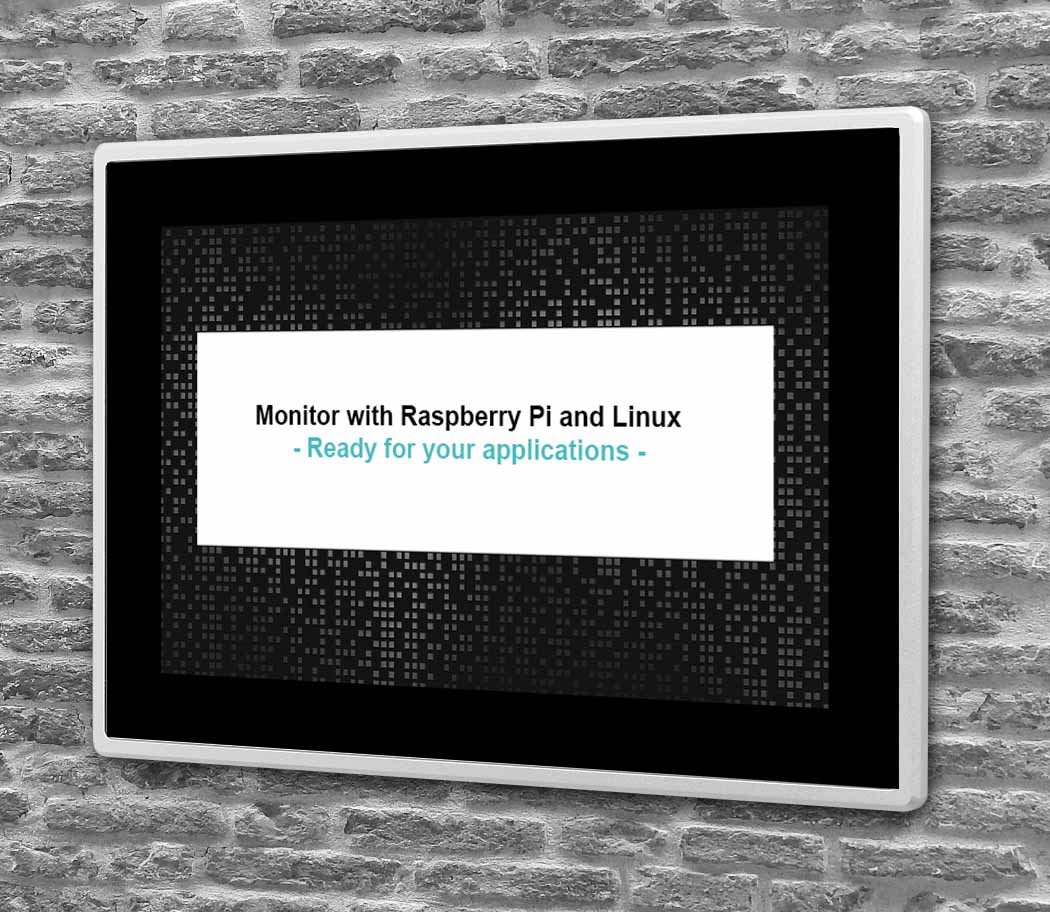

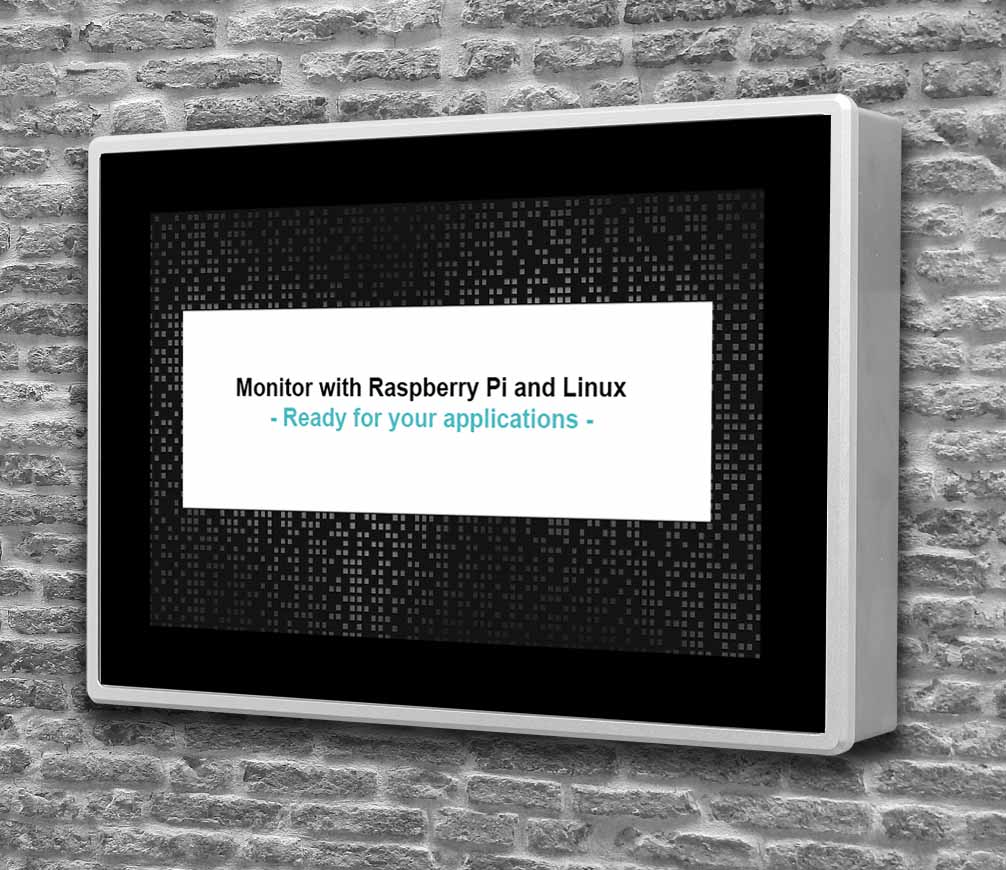

| Mounting | – | Flush wall installation (8 mm) or surface mounting with housing (50 mm) |
| Dimensions (W×H) | mm | 270 × 189 |
| Connectivity & Power | ||
| Network | – | RJ45, 100 MBit Ethernet |
| Power Supply | – | PoE according to IEEE 802.3af (via LAN cable) |
| Features | ||
| Configuration | – | Via web browser in the local network |
| Timer Control | – | Automatic display shutdown configurable |
